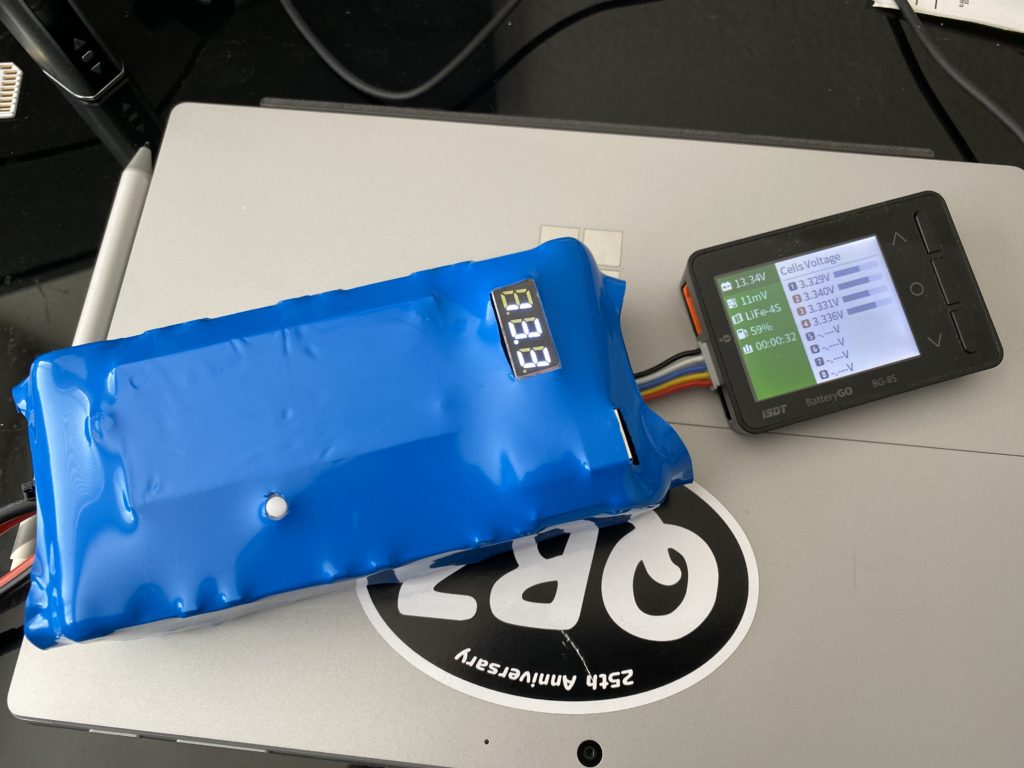

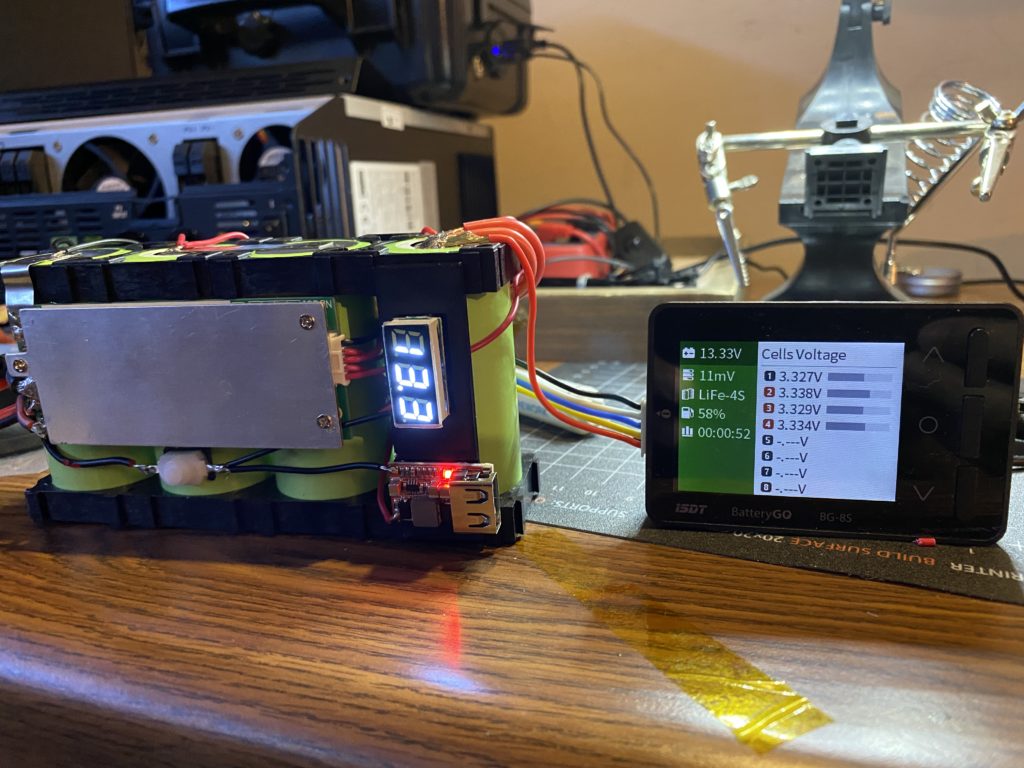

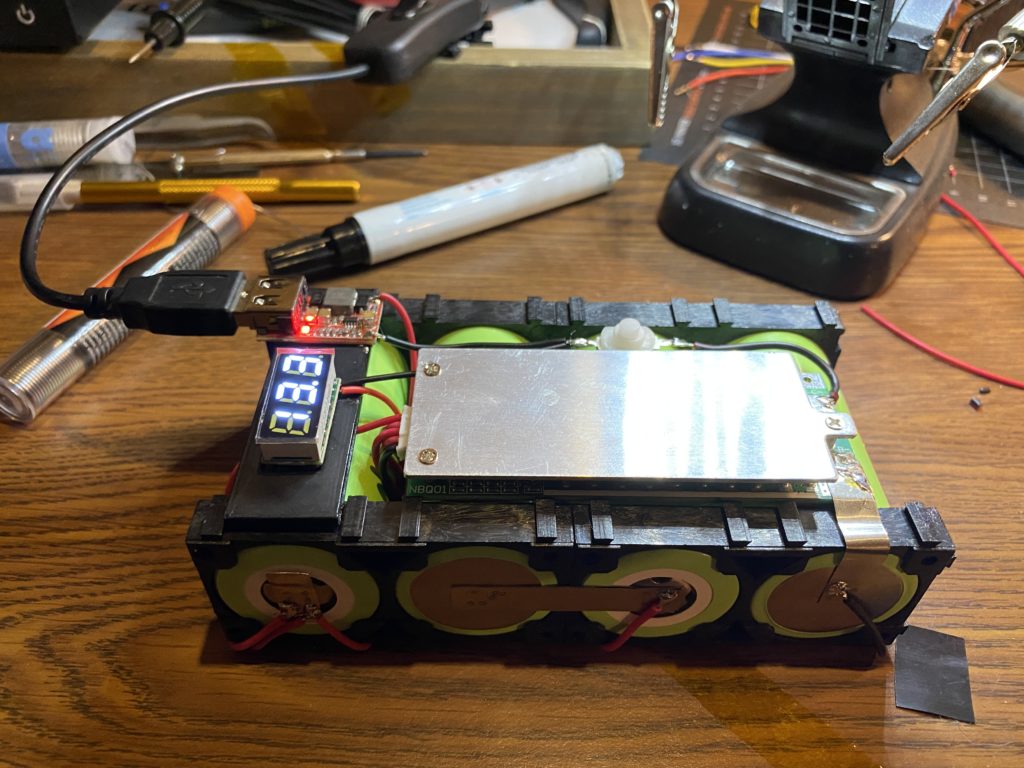

The DenCo Batt Mk VII was the first to incorporate a USB module to power up to 2.4A of 5V USB power for devices. This iteration also included balance leads (much like RC batteries) so that one could use a BattGo BG-8S Battery Meter to see each cell's voltage.

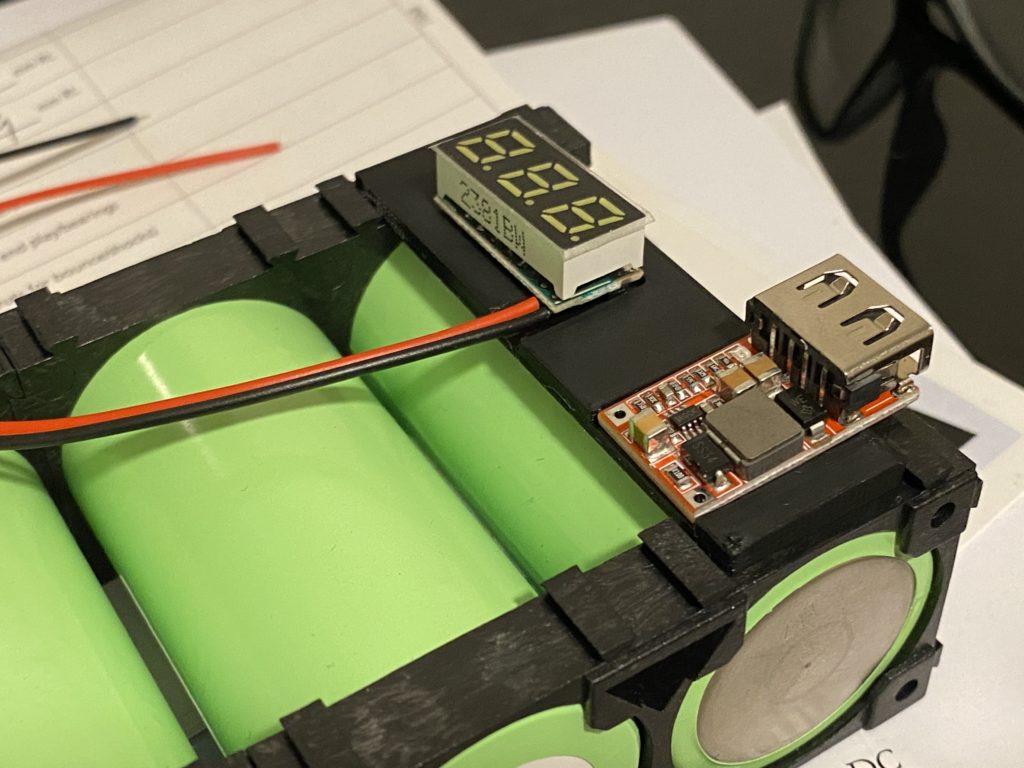

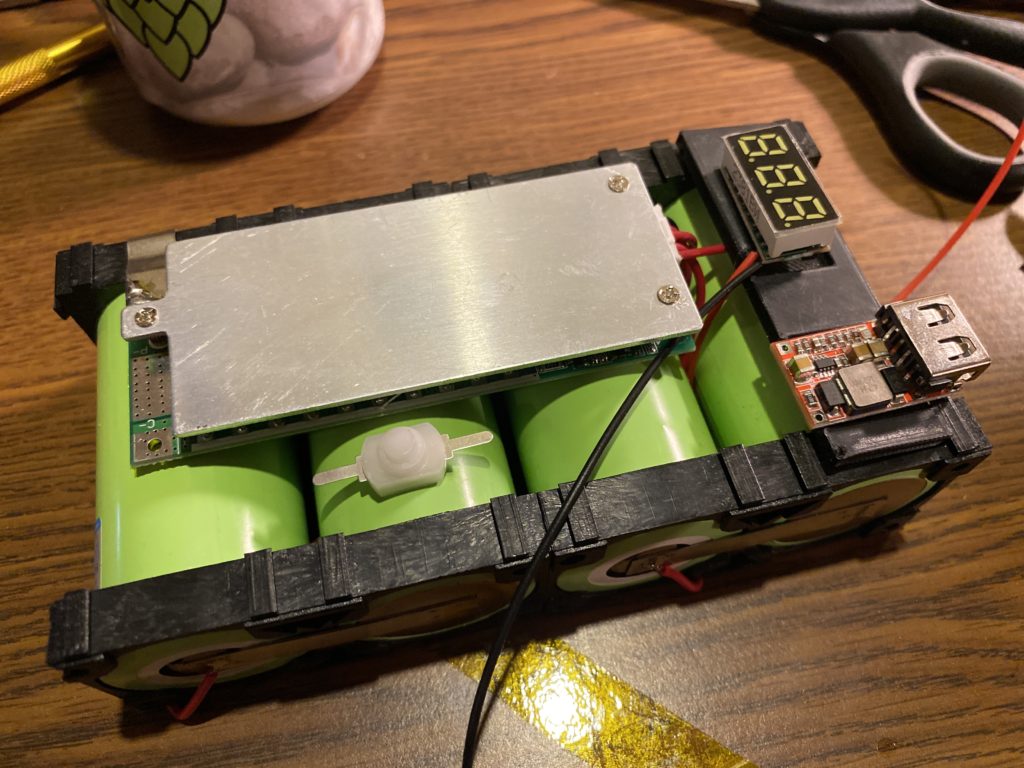

Also new in this build was a 3D printed bracket that held the voltmeter and the USB module.
This battery took 2 months to put together (mostly due to laziness and lack of a specific need). It was started in mid January 2020, and finished on February 29, 2020 (leap year).
General Specs:
Created: February 29, 2020.
Cells: Varicore 32700 6Ah 3.2v LiFePO4
BMS: 4S 100A 12.8V BMS Balance Proection PCB Board (a.k.a. “small thin 100A”)
Configuration: 4S1P
New since last make: USB output, 3D printed voltmeter/USB bracket, based on Mk VII.
Current Owner: WE4B Jeff
